VELAR HVLS FAN
Portable Model | Mobile Air Movement Solutions
The Syclones Velar Series portable HVLS fans provide flexibility and portability, allowing deployment to any location where ventilation is needed. Ideal for spaces where ceiling fans cannot be installed or for temporary ventilation solutions, the Velar Series balances temperatures, reduces humidity, and creates a safer, more comfortable working environment.
Key Advantages:
-
Complete portability and mobility
-
No ceiling installation required
-
Quick deployment for temporary needs
-
Heavy-duty construction with rust-resistant coating
-
Locking wheel system for stability
-
High IP grade PMSM motor
-
Ultra-quiet operation at 38dBA
Available in two configurations Velar.Z (2m) and Velar.X (1.5m) these mobile fans offer quick and easy installation with heavy-duty construction. Built with a robust iron frame and protective spray coating, Velar fans resist rust and maintain structural integrity. Optional smart energy management systems help optimize power use and reduce operational costs.
Parameter:
Model | Motor Power | Size | Max Speed (RPM) | Air Volume (m³/h) | Coverage Area (m³) | Fan Weight (kg) | Noise (dBA) |
|---|---|---|---|---|---|---|---|
Velar.Z | 750W | 2m | 280 | 82000 | 280 | 120 | 38 |
Velar.X | 750W | 1.5m | 380 | 55000 | 200 | 100 | 38 |
PORTABILITY & DEPLOYMENT
Mobile Air Movement Advantages
Flexibility for Any Application:
The Velar Series delivers professional-grade air circulation with the added benefit of complete mobility.
Key Deployment Scenarios:
Temporary Ventilation Needs:
-
Construction sites and renovation projects
-
Seasonal operations and pop-up facilities
-
Emergency ventilation requirements
-
Short-term event cooling
Hard-to-Reach Spaces
-
Areas with structural limitations preventing ceiling installation
-
Rented facilities where permanent installation is prohibited
-
Multi-purpose spaces requiring flexible air movement
-
Loading docks and semi-enclosed areas
Rapid Deployment: Quick installation without electrical work or structural modifications. Simply position, plug in, and operate—providing immediate air circulation where needed.
Reconfigurable Layouts: As facility layouts change, Velar fans can be easily repositioned to maintain optimal airflow patterns without costly reinstallation.
HIGH IP GRADE PMSM MOTOR
Water-Resistant High-Performance Motor
The Velar Series features high IP grade PMSM motor with enhanced water-proof protection, equipped with NSK bearings and magnetic steel temperature resistant to 180°C.
Motor Performance Benefits:
-
Improved operational stability
-
Reduced energy consumption and increased efficiency
-
Reduced risk of magnetic steel demagnetization
-
Optimized starting characteristics and commutation performance
-
Improved speed stability
Engineering Quality: NSK bearing technology ensures smooth, reliable operation with extended service life and minimal maintenance requirements.

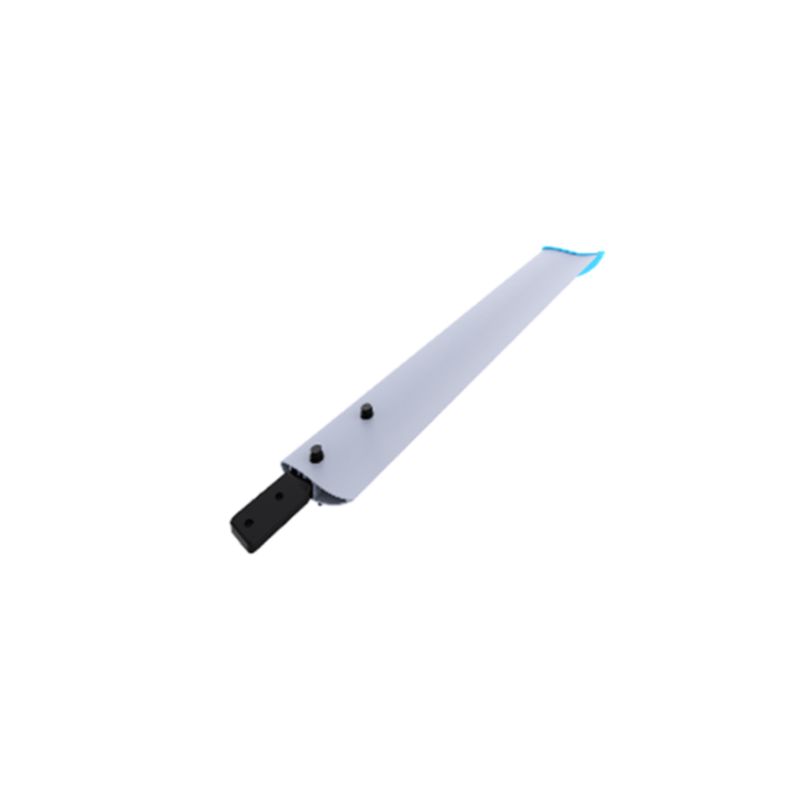

ALUMINUM ALLOY FAN BLADES
Material: 6063-T5 Aluminum Alloy
Velar fan blades are manufactured from aluminum alloy 6063-T5 with specialized reinforcement design.
Structural Engineering: The blade structure contains two connected reinforcing ribs and four unconnected reinforcing ribs, making the blades lightweight and more resistant to breakage.
Assembly Technology: When blades are connected to the hub and fastened with nuts and caps, the two E-shaped reinforcing ribs have controlled deformation capacity. When subjected to tightening force from top to bottom, the reinforcing ribs bend slightly, ensuring tight connection between hub and blades while maintaining structural strength.
HEAVY-DUTY IRON FRAME
Rust-Resistant Construction
The Velar Series features a strong iron frame with special spray paint coating that resists rust and protects the fan structure for long-term durability.
Frame Advantages:
-
Robust structural support
-
Corrosion-resistant protective coating
-
Long-term durability in industrial environments
-
Easy maintenance and cleaning
REINFORCED BASE AND WHEEL SYSTEM
Stable Mobility Platform
With the complete fan weighing nearly 100kg (Velar.X) to 120kg (Velar.Z), the base must provide robust support for the entire unit.
Base Design Features:
-
Specially designed reinforced base structure
-
Capable of supporting full fan weight and operational forces
-
Integrated brake system on wheels
-
Secure positioning and stability when deployed
Wheel System: The specially designed brake system allows the fan to remain securely positioned in any location, providing stable cooling performance without unwanted movement during operation.
