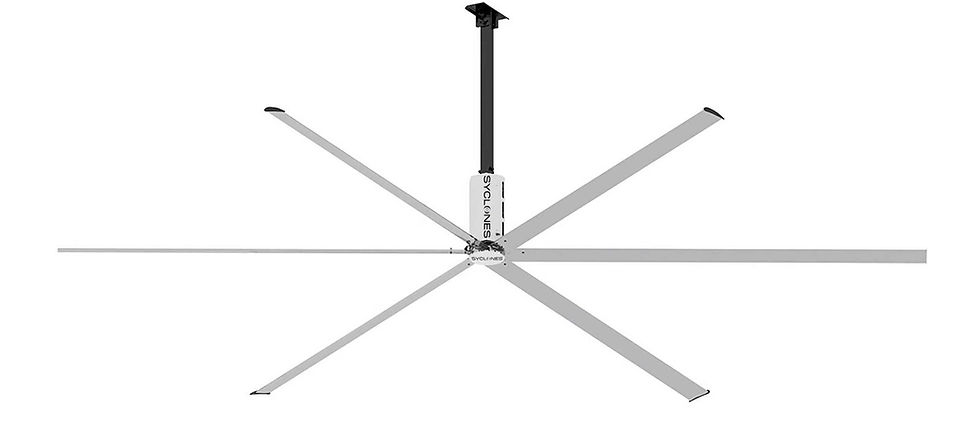

VODENZ HVLS FAN
Industrial Grade | German-Engineered ABM Gear Motor
The Syclones Vodenz Series HVLS Fan represents proven gear motor technology enhanced with German engineering excellence. Utilizing an advanced ABM gear motor with grease lubrication (oil-free operation), the Vodenz series delivers superior cooling airflow, higher air volume capacity, innovative safety technology, and a powerful, stable, and quiet customized powertrain designed for demanding industrial applications.
Key Advantages:
-
German-imported IE2 energy-efficient motor
-
Grease lubrication system (oil-free)
-
Maximum air volume output
-
Enhanced safety technology
-
Heavy-duty industrial performance
-
Ultra-quiet operation at 43dBA
GERMAN-ENGINEERED MOTOR TECHNOLOGY
IE2 Energy-Efficient ABM Gear Motor
The Vodenz series features a German-imported motor with IE2 energy-saving classification, delivering exceptional performance and reliability for demanding industrial environments.
Motor Specifications:
-
German-manufactured IE2 high-efficiency motor
-
Central shaft: 42CrMo chromium-molybdenum alloy steel
-
Output shaft diameter: 35mm
-
Double oil seals for enhanced protection
-
Low-pressure cast aluminum housing
Grease Lubrication System: Special performance lubricating grease (oil-free operation) provides long service life and lifetime maintenance-free operation—no oil changes required.
CONTROL SYSTEM
The Vodenz control system integrates premium electrical components for reliable, safe operation:
-
Holip Converters (Danfoss Group): Industry-leading motor control technology
-
Schneider Electrical Components: Premium contactors, relays, and protection devices
Features:
-
Radio Interference Suppression: Prevents electromagnetic interference
-
Integrated Braking Function: Controlled deceleration and stopping
-
Transparent Observation Window: Real-time status monitoring without opening enclosure
-
Front Panel Controls:
-
Operational indicator lights
-
Infinite speed adjustment dial
-
Three-speed preset switch
-
Protection:
Ground fault | Over-temperature | Over-current | Under/Over-voltage | Short circuit | Phase loss
Parameter:
Motor Power | Size | Max Speed (RPM) | Air Volume (m3/min) | Voltage / Current | Fan Weight (kg) | Noise (dBA) |
|---|---|---|---|---|---|---|
1.5KW | 24ft (7.3m) | 0-54 | 14500 | 220/380V (5.8A / 3.6A) | 138 | 43 |
1.5KW | 20ft (6.1m) | 0-60 | 13400 | 220/380V (5.5A / 3.4A) | 126 | 43 |
1.5KW | 18ft (5.5m) | 0-65 | 12800 | 220/380V (5.2A / 3.2A) | 115 | 43 |
1.5KW | 16ft (4.9m) | 0-70 | 12100 | 220/380V (5A / 3A) | 105 | 43 |
0.75KW | 18ft (5.5m) | 0-60 | 8200 | 220/380V (3.8A / 2.0A) | 98 | 43 |
0.75KW | 16ft (4.9m) | 0-65 | 7600 | 220/380V (3.4A / 1.8A) | 88 | 43 |
0.75KW | 14ft (4.2m) | 0-70 | 7150 | 220/380V (3.0A / 1.6A) | 76 | 43 |
Fan Blades
PREMIUM ALUMINUM ALLOY CONSTRUCTION
Material: 6063-T5 Aluminum Alloy
Vodenz fan blades are precision-manufactured from 6063-T5 aluminum alloy, selected for its optimal combination of strength, durability, and corrosion resistance.
Material Properties:
Tensile Strength: 215 MPa
Yield Strength: 160 MPa
Elongation: 15%
Brinell Hardness: 60 HB
Shear Strength: 150 MPa
Performance Advantages
High Structural Strength: Suitable for demanding structural applications
Superior Corrosion Resistance: Excellent performance in outdoor and marine environments
Excellent Formability: Precision manufacturing capability
Outstanding Weldability: Reliable fabrication and assembly
Wide Application Range: Suitable for diverse industrial environments
AERODYNAMIC OPTIMIZATION
Blade Element Momentum Theory Design
The Syclones blade profile is engineered using advanced Blade Element Momentum Theory, with extensive iterative design to identify the optimal curve and angle configuration. The proprietary blade geometry is patent-protected and represents years of aerodynamic development.
CFD-Validated Performance
ANSYS FLUENT analysis validated the Syclones blade design against dozens of aerodynamic profiles, confirming 5.7% greater airflow volume compared to alternative geometries under identical operating conditions.
Note: Detailed blade specifications are proprietary. Contact our technical team for application-specific performance projections.
STRUCTURAL ENGINEERING
The Syclones fan blade features specialized internal reinforcement with two connected reinforcement ribs and four independent reinforcement ribs, creating a lightweight structure with enhanced fracture resistance.
Assembly Technology: The E-shaped reinforcement ribs exhibit controlled deformation during assembly. When secured with fasteners, the ribs flex slightly to ensure secure connection between mounting hardware and blade sections while maintaining structural integrity throughout the blade assembly.
SAFETY-ENGINEERED MOUNTING SYSTEM
Beam Connection Assembly
The Syclones mounting system features 8mm thick steel plates with precision bend technology and robotic welding, ensuring complete installation safety and eliminating accident risks through high structural load capacity and fatigue-resistant design.
INSTALLATION INFORMATION
Requirements:
-
Minimum Ceiling Height: 4 meters recommended
-
Clearance: Minimum 0.3m above fan, minimum 3m below blade tips
-
Mounting Options: Structural ceiling mount, I-beam mounting with brackets, concrete ceiling with expansion anchors
-
Electrical: Dedicated circuit, proper grounding, voltage 220V or 380V (model dependent)
FAN SAFETY STRUCTURE
Enhanced Safety Features
The Vodenz series incorporates additional safety engineering features designed for high-reliability industrial applications:
Safety Components:
-
Redundant fastening systems
-
Safety cable backup attachment points
-
Reinforced mounting bracket design
-
Vibration dampening technology
-
Fail-safe mechanical design
Certification & Standards:
All Vodenz safety features meet or exceed international safety standards for industrial ceiling-mounted equipment, providing peace of mind in demanding operational environments.
CFD ANALYSIS SERVICES
Professional Airflow Simulation for Optimal Results
Computational Fluid Dynamics (CFD) Analysis Available
For large-scale projects and VIP clients, Syclones provides comprehensive CFD airflow simulation services to optimize your fan installation for maximum performance and efficiency.
Our CFD Process:
-
Facility Documentation - Provide 3D drawings or detailed measurements of your project space
-
Engineering Analysis - We model your facility and simulate airflow patterns with Syclones fans
-
Optimization - Calculate optimal fan sizing, quantity, and placement locations
-
Performance Projection - Receive detailed analysis showing expected airflow, temperature distribution, and energy efficiency
Benefits: Achieve most effective ventilation | Optimize equipment investment | Ensure proper coverage | Maximize energy efficiency | Reduce total project costs
